短小精悍
V60 Type R
開放式韌體QMK自訂義
RGB 多彩底燈背光
Learn
QMK open source開放式韌體!
韌體設計者 geekhack @sdiearly

不支援PS4
V60 type r
Deep Ocean

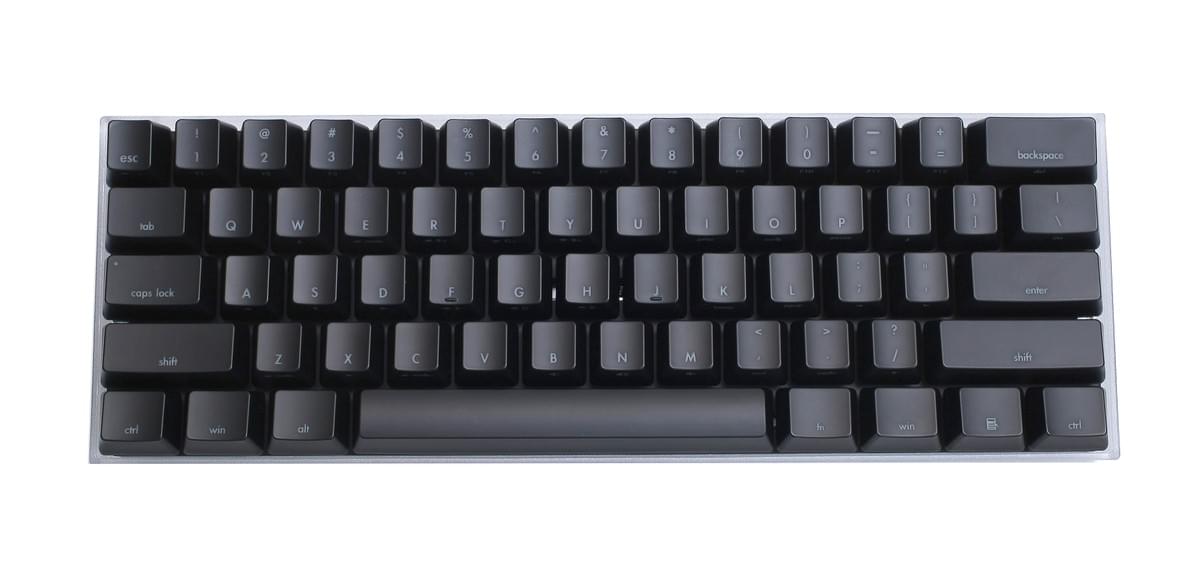

標準60%鍵位配置
標準配置方便更換任何鍵帽
最廣泛的鍵位布局
動力心臟
atMEGA32U4 mcu
使用功能強大的32位元 Atmel ATmega32U4
微處理器,提供超快速運算速度
最廣泛QMK自訂義功能最有彈性
DOWNLOAD SPEC
德國工藝
Cherry MX 櫻桃軸
耐久彌新最少５千萬次的敲擊,與絕佳使用手感
V60 Type ReView
使用者體驗！
Buy
V60 Type R Polestar Typing Test
敲擊測試
DOWNLOAD
How to program V60 Type R
via TMK / QMK / TKG tool

Try it
learn from here http://www.bytesizedworkbench.com/blog/2017/08/07/programming-the-kbparadise-v60-polestar-keyboard/
select Fantastic60
Download Now
download how to program V60Type R
select "Fantastic60"
DOWNLOAD PDF
北極星版本
Polestar
正面色燈／黑色烤漆透光鍵帽

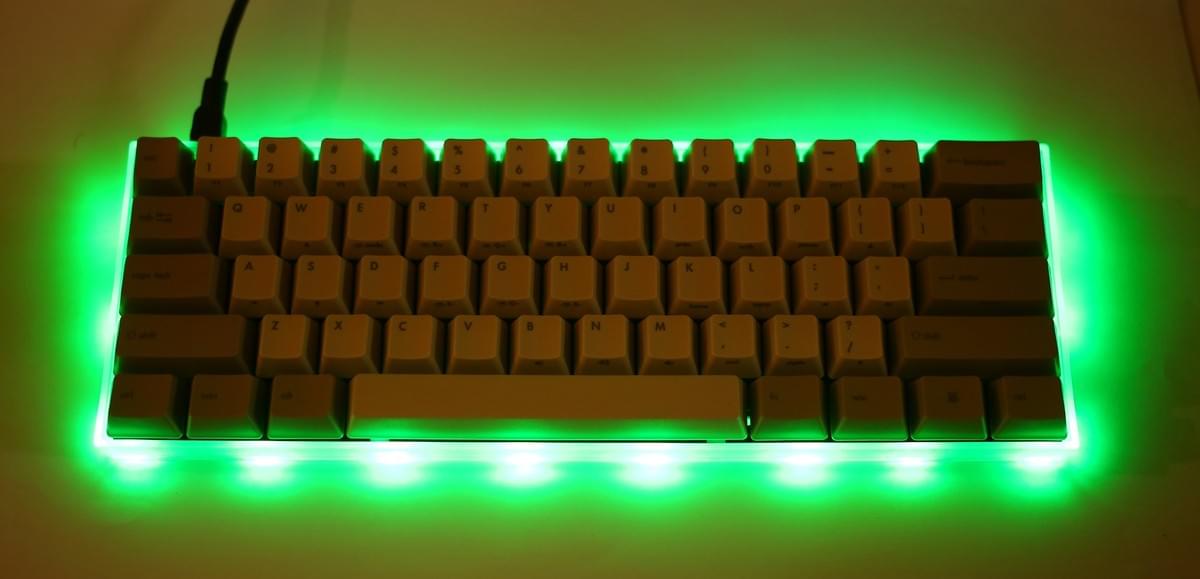

底面RGB 多彩燈光／PC材質透明鍵盤本體
北極星雙色鍵帽版本
Polestar double shot keycap version
　ABS雙色鍵帽搭配RGB多彩底燈

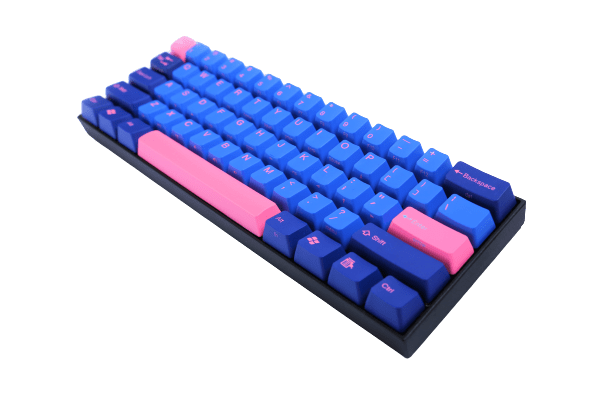

深海
藍鍵粉字
驚悚夜
亮藍黑
紫色夢幻
雙色鍵帽版
Standard double shot keycap edition
純粹不虛華
Deep Ocean
Starry Night
Purple Dream
Carbon
type r matias polestar
Fully programmable and underglow RGB ALPS keyboard
learn
Description
V60 TYPE R
The KB Paradise V60 Type R keyboard is a mini 60% keyboard, roughly 60% of the size of a standard keyboard with 60% of the keys.The V60 also comes with a detachable cable, to help when transporting your keyboard.
Say goodbye to rage quits due to crappy hardware. The V60 Type R comes equipped with a 32-bit Atmel ATmega32U4 processor for consistent precision and performance. Register keystrokes instantly. Save and execute commands and macros in a snap.
FEATURES
Open source firmware
Programmable via QMK/TMK/TKG tool
Standard ANSI Layout
Use Type R as a standard 60% keyboard or program it as your needs!
Fully Programmable – QMK open source!
Firmware designed by geekhack @sdiearly

SPECIFICATIONS
Model: V60 Type R
Size: 60%
Switch Stems: MX
Physical Layout: US QWERTY
Logical Layout: ANSI
Frame Color: Black
Frame Top Material: Plastic
Frame Bottom Material: Plastic
Primary LED Color: n/a
Control LED Color: n/a
USB Key Rollover: Full
Multimedia Keys: Yes
Switch Mount Type: Plate
Built in Audio Port: No
Built in Mic Port: No
Interface(s): USB
Windows Compatible: Yes
Mac Compatible: Yes
Linux Compatible: Yes
Dimensions: 11.42" x 3.94" x 1.68"
Weight: 1.25 lbs
Cord Length: 60 inches
韌體不支援PS4環境
Q & A
Q & A
Question :What's the difference between V60 and V60Type R ?
Ans :
Major difference,
V60 firmware not allow key map ( programmable ) , only adjust couple keys by 6 port dip switch at back side.
V60 Type R , use open source firmware , end user can programmable via QMK / TMK / TKG tool.
V60 Type R Polestar version also support RGB underglow.

Question : I recently got my V60 Type R board but I'm not sure how to change the color of the underglow. I know how to change the color mode from breathing to a solid color but I don't know how to adjust the color.
Ans :
we have 3 versions of V60 Type R
a. ) NO Led. Black Case
b. ) Polestar : Top No LED ( ABS Double Shot keycap ) , Rear RGB LEDs . Transparent Case.
c. ) Polestar : Top White LED ( ABS Shine Through keycap ) , Rear RGB LEDs . Transparent Case.
There are 2 area to control LEDs.
Please trial and error to test the LEDs function.

Be note that , if the RGB underglow not as bright as expect , please try to adjust top white LEDs. ( press FN+X , FN+C . FN+Z )
